Product Details:
|
| Material: | Carbon Steel,stainless Steel | Condition: | New |
|---|---|---|---|
| Voltage: | 220V,380V,440V | Warranty: | 1 Year |
| Usage: | Transfer Pre-broken Animal Bone And Offal | Structure: | Conveyor System |
| Feature: | Simple Operation | Weight: | 600kg |
| High Light: | transfer lamella pump,conveyor system lamella pump,Carbon steel Lamella Pump |
||

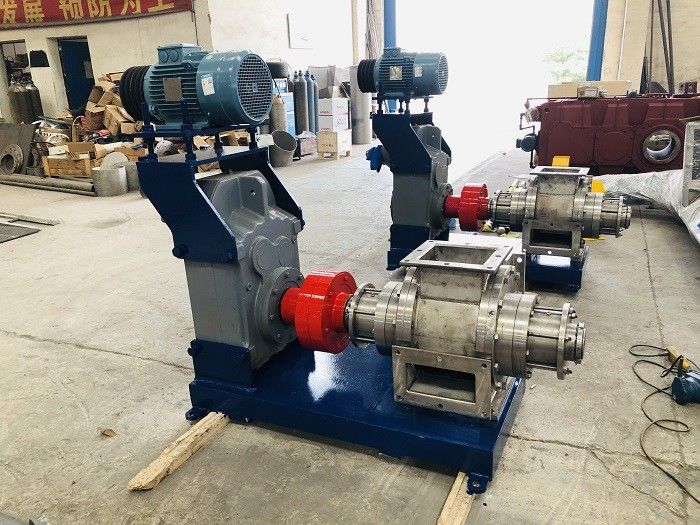

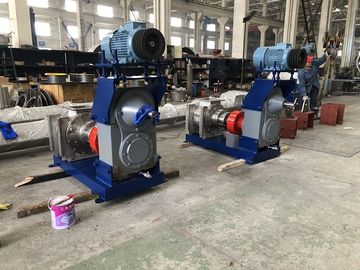

One Year Warranty Large Capacity Conveyor System Transfer Pump Lamella Pump
Prodction description
Lamellar pumps are used to transport solid materials such as pre-crushed bones and offal from slaughterhouses and other meat processing plants.
Lamellar pump is a kind of large capacity pump, but compared with the traditional conveying system such as screw conveyor, the energy consumption is lower.
Pump Parameter
| Type/Unit | LP25 | LP35 | LP45 | |
|
输送量 conveying capacity |
m3/h | 48 | 105 | 270 |
|
最高转速 Max. Rotating speed |
rmp | 80 | 70 | 60 |
|
扬程 Lift |
m | 10 | 25 | 75 |
|
输出扭矩 Torque |
Nm | 4000 | 7000 | 15000 |
|
重量 Weight |
kg | 390 | 550 | 915 |
|
输送固体最大尺寸 Max. Size of solid |
mm | 65 | 85 | 135 |
|
连接管口 Pipe connection |
mm | 150 | 250 | 350 |
