Product Details:
|
| Material: | Stainless Steel/Carbon Steel/Copper | Port: | Shanghai |
|---|---|---|---|
| Vacuum Degree: | Adjustable | Main Uses: | Concentration |
| Condenser: | Vertical | After-sales Service Provided: | Commissioning And Training |
| High Light: | wiped film evaporator,thin film evaporator |
||

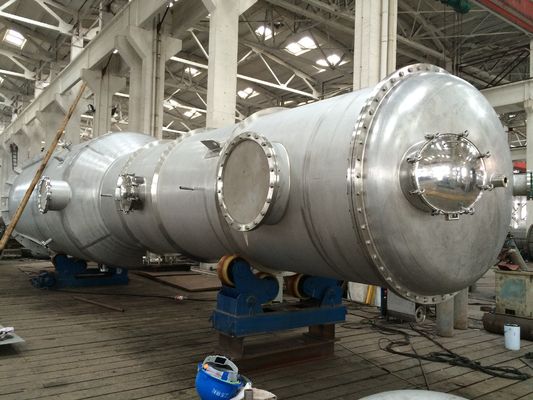

ASME Certified Evaporation Equipment Multiple Effect Thin Film Evaporator Design
Product description
Multiple Effect Falling Film Evaporator is widely used in the concentration of chemical, ketchup, glucose, starch sugar, oligosaccharide, caramel, sorbitol, fresh milk, fruit juice, vitamin C, maltodextrin, pharmaceutical and other aqueous solutions. Besides, it is also widely used in the waste liquid treatment of monosodium glutamate, alcohol, fish powder and other fields.
It contains of single-effect, dual-effect and triple-effect evaporators, single-effect, dual-effect and triple-effect separators, preheater, condenser and hot pressure pump.
Main features
(A) Low evaporation consumption, 1Kg steam can evaporate 3.5Kg water.
(B) Low evaporation temperature. Part of twice steam can be inhaled into single-effect heater through spray type hot pressure pump. The high quality evaporation can be fully used and the evaporation temperature is low.
(C) Large concentration ratio with downward film type evaporation, which can make material liquid with viscosity be so easy to flow and evaporate, Hard to agglomerate with short concentration time. The concentration ratio can reach 1:5.
(D) The equipment can realize automatic production, intellectual system, which is conformity with GMP standard.
Technical parameter
|
Model |
Single effect |
Double effect |
Triple effect |
Quadruple effect |
Quintuple effect |
Sextuple effect |
|
Evaporation capacity(t/h) |
3 | 5 | 50 | 150 | 200 | 300 |
|
Feeding concentration |
As per material characteristics |
|||||
|
Discharging concentration |
As per material characteristics |
|||||
|
Steam pressure(MPa) |
0.05-0.1 | |||||
|
Steam consumption(t/h) |
1-1.5 | 0.4-0.6 | 0.3-0.4 | 0.25-0.3 | 0.25 | 0.22 |
|
Steam temperature |
As per material characteristics |
|||||
The equipment can be designed and manufactured as per customer's requirement.
