Professional Starch Drying Machine ASME Certificated High Drying Efficiency

China Professional Starch Drying Machine ASME Certificated High Drying Efficiency supplier

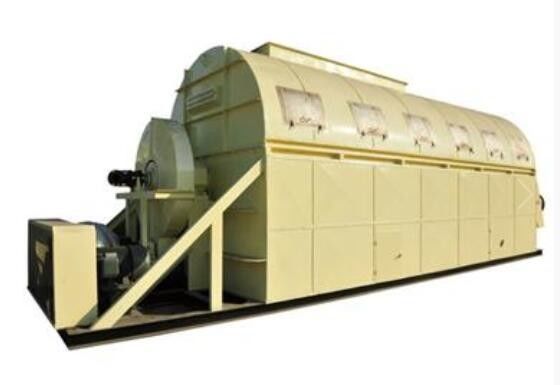

Large Image :  Professional Starch Drying Machine ASME Certificated High Drying Efficiency

Product Details:

Place of Origin: Jiangsu, China
Certification: CE,ISO,SGS,TUV,DNV certificate
Model Number: As per requirement

Payment & Shipping Terms:

Minimum Order Quantity: >=1 Pieces
Price: $80,000.00
Packaging Details: ASME certificated Horizontal Vacuum Starch Drying Machine Tube Bundle Dryer: Good Packed by plastic wrapo on Iron Frame, Suitable for land transporation and sea shipping.
Delivery Time: 3-4 months
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 10 Piece/Pieces per Year
Contact Now
Detailed Product Description
Applicable Industries: Food & Beverage Factory Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Type: Rotary Drying Equipment Key Selling Points: Competitive Price
High Light:

sludge dryer system

,

rotary drying equipment

Horizontal Vacuum Tube Bundle Dryer made by a professional manufacturer Starch Drying Machine ASME Certificated





Production Description



In this Dryer, tube bundle is rotating inside stationary housing. Heating Media is passed through the tubes of Tube Bundle. Material to be dried is fed into the stationary dryer housing at suitable location at one end. The material gets lifted up & showered on tubes with help of specially designed lifters provided on tube bundle periphery. Material gets dried by conduction heat transfer & discharged from the other end.

Professional Starch Drying Machine ASME Certificated High Drying Efficiency





Technical parameters



Materials Inlet moisture Outlet moisture Drying capacity Power consumption (KJ/evaporation KG water)
Germ 55% 3-5% 2.5-3.5 1.2-1.5T evaporation/1T water
Comn fiber 60% 10-12% 3.5-3.8
Protein powder 65% 10% 3.0-4.5
yam fiber 65% 10-12% 3.0-4.5
Vinasse 65% 10-12% 4.5-5.0
fish meal, bone 40% 8-10% 4.5-5.0
Forage 40% 8-10% 4.5-5.0



Model GS-100 GS-200 GS-300 GS-500 GS-800 GS-1000 GS-1200 GS-1500
Area (M2) 100 200 300 500 800 1000 1200 1500
Power(KW) 7.5 15 22 37 90 110 132 132







FAQ:



Q1: Which level quality are your products?

We have got CE,ISO,SGS,TUV,DNV certificate so far.



Q2: How can I choose the dryer?

Please tell us what is the raw material and how many raw material do you want to process per day? how many final product do you want to get? We will make a proposal for you within 24 hours.



Q3: what's your payment term?

We accept T/T and L/C.



Q4: How to guarantee the high quality?

We have testing department to make sure every product of size, appearance and pressure test are good.



Q5: How can I use the machine when I get them?

Our engineer is available to service machine overseas and train your workers how to use the machine and provide the installation and commissioning service at your site.
