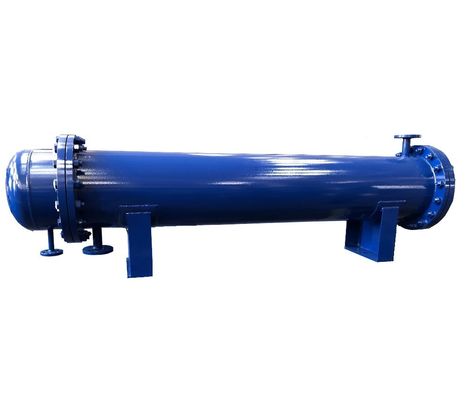

Oil And Gas Industrial Heat Exchanger Less Than 10Mpa ASME ROHS Approved

Oil And Gas Industrial Heat Exchanger Less Than 10Mpa ASME ROHS Approved
Oil And Gas Industrial Heat Exchanger Less Than 10Mpa ASME ROHS Approved Oil And Gas Industrial Heat Exchanger Less Than 10Mpa ASME ROHS Approved Oil And Gas Industrial Heat Exchanger Less Than 10Mpa ASME ROHS Approved

Large Image :  Oil And Gas Industrial Heat Exchanger Less Than 10Mpa ASME ROHS Approved

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Stord
Certification: CE,ISO,SGS,TUV,DNV certificate
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $1,000.00
Packaging Details: Best quality heat tube exchanger Manufacturer ASME,CE SGS, ROHS:Good Packed by plastic wrapo on Iron Frame, Suitable for land transporation and sea shipping.
Delivery Time: 3-4 months
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 20 Set/Sets per Month

Oil And Gas Industrial Heat Exchanger Less Than 10Mpa ASME ROHS Approved

Liquid Flow Rate: Max 50m3 Maximum Working Pressure: 10Mpa
Weight: As Per Design Warranty: 2 Years
After-sales Service Provided: Free Spare Parts, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support Applicable Industries: All Industries
Condition: New Structure: Tube Heat Exchanger
Voltage: 220/380 Dimension(L*W*H): As Per Design
Tube Material: Stainless Steel/Carbon Steel/Copper Gaskets Material: Silicone/FKM/PTFE
Frame Material: Cabon Steel Tube Diameter: 19mm-325mm
Design Pressure: Less Than 10Mpa Application: Heat Transfer,cooling
Port: Shanghai
High Light:

carbon steel heat exchanger


industrial shell and tube heat exchanger

Product description

Tube heat exchanger is the feature product in our company, of which the structure design, manufacturing and application are unique. Spiral tube type, arc tube and baffle plate type tubular exchanger are independent R&D products in the company, featuring advanced technology in the world, widely used in industries particularly in petrifaction, electricity and metallurgy.

Heat exchanger, also called heat transfer machine, is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.

The type of heat exchanger that our company can provides: Spiral-plate heat exchanger, corrugated tube heat exchanger, threaded pipe heat exchanger, plate heat exchanger, spiral baffle plate heat exchanger, double-tube plate heat exchanger, fin tubular heat exchanger, float-head heat exchanger, U-tube heat exchanger, stacked heat exchanger, and decompose type heat exchanger etc.

Heat exchange area and pressure can be customized according to customers' requirements. The tube heat exchangers which include U type, float-head type, corrugated tube type.


Main features of tube heat exchanger

1. Material: stainless steel and/or carbon steel, manganese steel, copper and titanium etc.
2. Heat exchanger area: 1 - 500sqm.
3. Shape: fixed pipe plate, floating head, U-type pipe.
4. Structure: single channel, double channel and multi-channel.
5. Used for evaporating, heating, condensing, cooling process.
6. Various specifications available according to customer's requirements.



Technical parameters



Main technical parameters of our tube heat exchanger
Maximun design pressure no more than 10 Mpa
Maximum design temp 850"C
Maximum shell diameter 4600mm
Maximum area of heat exchanger for single facility 6000mF
Tube specification 19~325mm
Tube length 1000~16000mm
Material Carbon steel, stainless steel 304, 316 L, 2205, 904 L; titanium,copper, nickel and hastelloy


Product details:

Machine parts


Good quality and well welded.


Machine Parts

Heating tube and tube sheet
There are multiple specifications and length of tube to choose from.


Machine Parts

Flange(Stainless steel)
Customized, good quality and well welded .



Hydro test or pneumatic test will be carried out for each pressure vessel, and then issue test report.


Packing and Delivery

1.Carefully check the quantity and quality of equipment before packing.
2.Good packed by plastic wrap.
3.Fittings and spare parts are packed in wooden pallet .
4.Iron Frame, Suitable for land transport and sea freight
5.Add labels and shipping mark.


Our service:

1. Pre-sales service

a. Inquiry and consulting support. Our team includes sales man, technology engineer will discuss together and provide a professional technical design and solutions, fast reply your inquiry or questions by phone meeting or video meeting or email.

b.Invite customer to visit our workshop.

2. After-sales service

a. Inform the manufacturing progress in time.

b. Carefully check the quality of products.

c. Standard export package or as your demand.

d. Spare and wearing parts for free or with big discount.

e. If any problem occur in warranty, contact us freely, we will try our best to support

f. The warranty of complete rendering plant will be available within one year after completion of test run.

g. Engineers are available to service overseas.



Q1:What'sis the price of heat exchanger?

The price is based on your request technical data, such as the heating area, equipment material etc, different model has different price, so if you need the price, please send me your detail technical data or photos or drawings.

Q2: Do you give any discount ?

I'll try my best to help you get those by the best price and good service at the same time.

Q3: Which level quality are your products?

We have got CE,ISO,SGS,TUV,DNV certificate so far.

Q4: what's your payment term?

It is negotiable. generally,40% Down, 60% before delivery after inspection by the Customer.
