Flexibility Civil Sludge Dryer For Industrial Disposal Support

Flexibility Civil Sludge Dryer For Industrial Disposal Support
Flexibility Civil Sludge Dryer For Industrial Disposal Support

Large Image :  Flexibility Civil Sludge Dryer For Industrial Disposal Support

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Stord
Certification: CE,ISO,SGS,TUV,DNV certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard, suitable for sea freight and land transportation
Delivery Time: 3-4 months
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 9 sets / year

Flexibility Civil Sludge Dryer For Industrial Disposal Support

Description
Raw Material: Civil Sludge, Industrial Sludge Machine Material: Carbon Steel, Stainless Steel304, Stainless Steel 316
Voltage: 380V,440V (The Voltage Can Be As Local Demand) Market: Peru, Chile, Spain, Canada, The United States, Russia, Denmark, South Africa And Iceland
Condition: New Warranty: 1 Year
Function: Make Animal Waste To Be Meal And Oil
High Light:

Flexibility Sludge Dryer

,

Civil Sludge Dryer

,

Industrial Disposal Support Sludge Dryer





Main Features of sludge drying plant

1. high drying efficiency.

2. flexibility of operation and installation.

3. easy to control, good stability.

4. high safety performance.



Product details

sludge volute press

Volute dewatering press pertains to spiral extrusion machine, which can improve desilter and sludge thickener, and save construction cost of exhaust water factory. The machine replaces automatic update for filtration of filter mass for traditional sieving filteration. Consecutive separation of water and sludge is realized efficiently. Extrusion and dehydration of sludge is carried out via strong force resulting from the change of spiral spindle diameter and screw pitch, as well as tiny gap between float ring and fixing ring. Sludge is concentrated by gravity at concentration system before transferred to dehydration system. During delivery, filtration gap and screw pitch get smaller, and internal pressure is produced with resistance of back pressure plate and volume is reduced, thus realizing extrusion and dehydration.

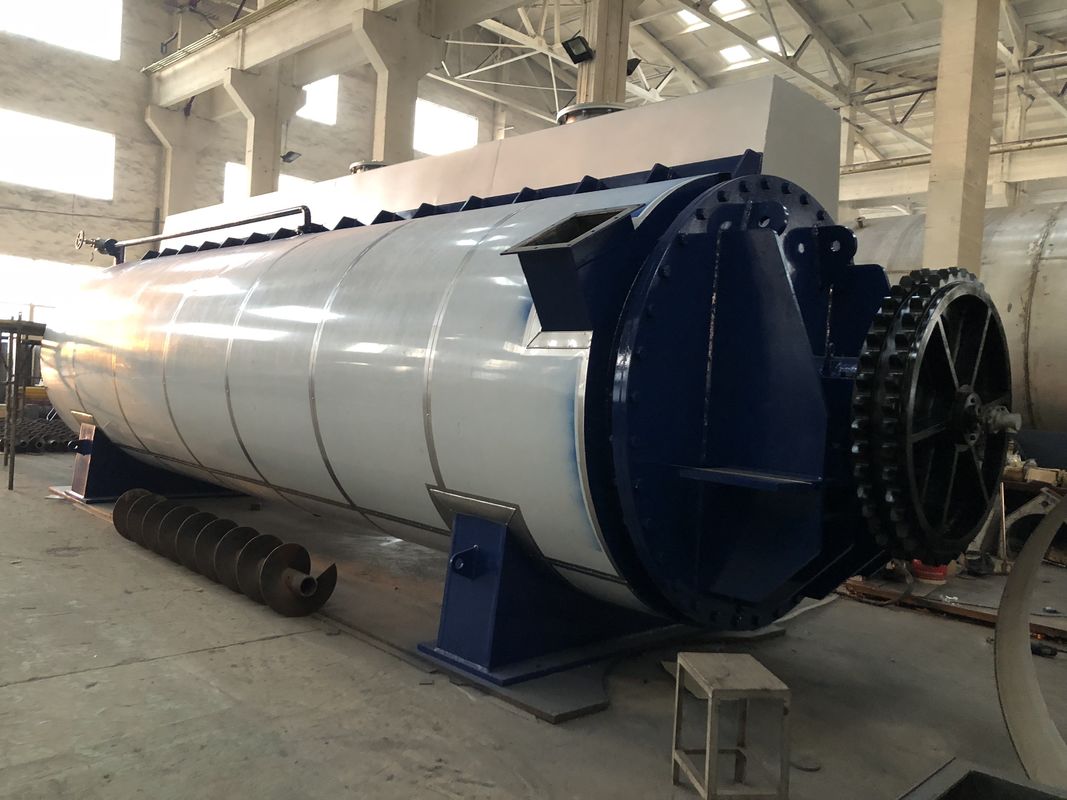

Disc dryer

disc dryer can heat not only by the shell but also by the internal rotor, greatly increasing the drying area, improving the thermal efficiency and ensuring the complete drying of materials. This equipment is characterized by high drying efficiency, long service life and low maintenance frequency and finds extensive applications in drying the materials with high moisture content and high viscosity such as municipal sludge, industrial sludge, animal protein, plant protein, food, chemical materials and pesticide. According to different physical properties of materials, the disc dryer can be constructed of carbon steel, stainless steel 304, 316L and dual phase steel.



Hollow blade Paddle dryer

Hollow blade Paddle dryer is a kind of heat conducting and low speed mixing type dryer. There is a jacket installed inside the cylinder and hollow blades equipped in the hollow shaft, when heat carrier enters, wet materials are mixed by the paddle, thus heat exchange of cylinder and stirring blade hot surface is fully processed, so that raw materials are dried.



Company information

company profile

Jiangsu Stord Works Ltd. is located in national machinery industrial park, which is at the coast of Taihu Lake, Fangqiao Town, Yixing City, Jiangsu Province. Our company has more than 180 employees, covers an area of 25000m2 and has more than 70 sets of various manufacturing and testing equipments. The maximum lifting capacity is 100T. The bending capacity for the thickest plate is up to 120mm.



Our office area

Flexibility Civil Sludge Dryer For Industrial Disposal Support 0



Our processing equipment

Flexibility Civil Sludge Dryer For Industrial Disposal Support 1



Our service:

1.  1.Pre-sales service

a.  Inquiry and consulting support. Our team includes sales man, technology engineer will discuss together and provide a professional technical               design and solutions, fast reply your inquiry or questions by phone meeting or video meeting or email.

b. Invite customer to visit our workshop.

2. After-sales service

a. Inform the manufacturing progress in time.

b. Carefully check the quality of products.

c. Standard export package or as your demand.

d. Spare and wearing parts for free or with big discount.

e. If any problem occur in warranty, contact us freely, we will try our best to support

f. The warranty of complete rendering plant will be available within one year after completion of test run.

g. Engineers are available to service overseas.

Flexibility Civil Sludge Dryer For Industrial Disposal Support 2



FAQ

Q1: can you supply the machine of whole line of sludge drying?

Yes, we are professional workshop, we can design and manufacture the machine as per your requirements.

Q2: How can we do after we get the machine?

Our engineer will supply oversea service, install the machine and train your stuff.

Q3: Which level quality are your products?

We have got CE,ISO,SGS,TUV,DNV certificate so far.

Q4:How can I choose the drying machine?

Please tell us what is the raw material and how many raw material do you want to process per day? how many final product do you want to get? We will make a proposal for you within 24 hours.

Q5: what's your payment term?

It is negotiable. Generally,40% Down, 60% before delivery after inspection by the Customer.



Dear customers, if you have other problems to be resolved, send e-mails now.
