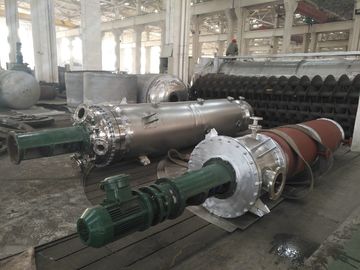

Customized Distillation Equipment Wiped Falling Film Scraper Evaporator

Customized Distillation Equipment Wiped Falling Film Scraper Evaporator
Customized Distillation Equipment Wiped Falling Film Scraper Evaporator Customized Distillation Equipment Wiped Falling Film Scraper Evaporator

Large Image :  Customized Distillation Equipment Wiped Falling Film Scraper Evaporator

Product Details:
Place of Origin: Jiangsu, China
Certification: ISO,SGS,CE,ASME
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Pieces
Price: Negotiable
Packaging Details: Customized Distillation Equipment Wiped Falling Film Scraper Evaporator: Good Packed by plastic wrapo on Iron Frame, Suitable for land transporation and sea shipping.
Delivery Time: 120days
Payment Terms: L/C, T/T
Supply Ability: 20 Piece/Pieces per Month

Customized Distillation Equipment Wiped Falling Film Scraper Evaporator

Description
Condition: New Power Source: Electric
Process: Wiped Film Voltage: As Per Requirement
Warranty: One Year After-sales Service Provided: Commissioning And Training,Overseas Service Center Available
High Light:

thin film evaporator

,

falling film heat exchanger

Customized Distillation Equipment Wiped Falling Film Scraper Evaporator



Product  description

scraper evaporator, a strong adaptability, such as high viscosity, heat sensitive and easy crystallization and scaling of materials used. It is mainly composed of heating jacket and scraper, heating steam inside jacket, scraper mounted on rotatable shaft, scraper and inner wall of heating jacket keep very small clearance, usually 0.5 to 1.5 mm. Feed preheated by the top of the evaporator along the tangential direction, due to gravity, centrifugal force and rotating scraper scraping effect, spin of the film in the solution to form the inside wall, and this is in the process of evaporation, liquid in the bottom discharge, two steam escaping from the top. The evaporator is a single - way evaporator with an external dynamic film formation.

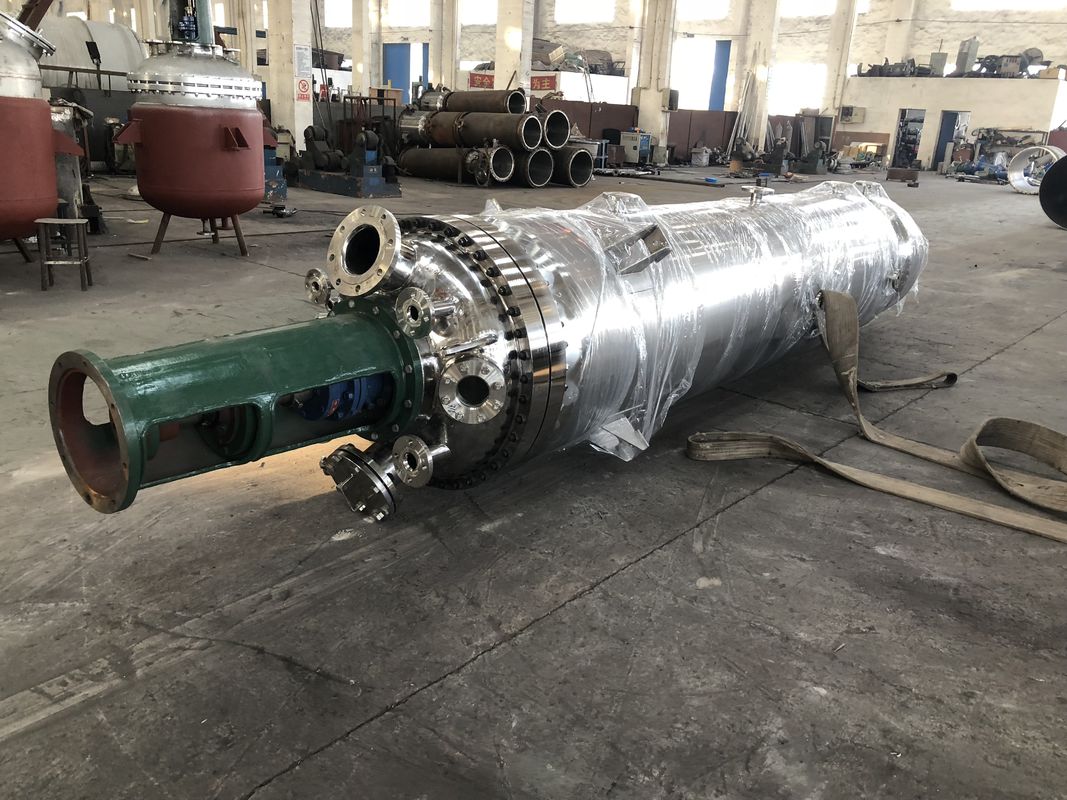

Customized Distillation Equipment Wiped Falling Film Scraper Evaporator 0



Technical description

Model

LG-3 LG-5 LG-10 LG-15 LG-20 LG-25 LG-30

Heating exchange

area(m2)

3 5 10 15 20 25 30

Steam pressure(MPa)

0.5

Screw speed

(r.p.m)

80-300

Motor power

(kw)

Evaporation capacity depends on different materials

Capacity

(t/h)

4 5.5 7.5 11 15 22 30



Product features

1. The heat transfer coefficient is high, large evaporation capacity, evaporation intensity can reach 200kg/㎡/h, high thermal effciency.
2. Material heating time is short, between about 5-10 seconds, and work under vacuum conditions, more favorable for heat-sensitive material, maintaining a variety of ingredients does nor produce any decomposition, to ensure product quality.
3. To adapt to a wide range of vicosity, low viscosity materials can handle the material viscosity up to 100,000 CP.
4. Changing the direction of rotation of the blade grooves, you can adjust the material; evaporation time in the enviporator
