Product Details:
|
| Applicable Industries: | All Industry | Type: | Reaction Kettle |
|---|---|---|---|
| Power(W): | 55-110 | Design Pressure: | Less Than 10Mpa |
| High Light: | mixing reactor,stainless steel solvent tank |
||

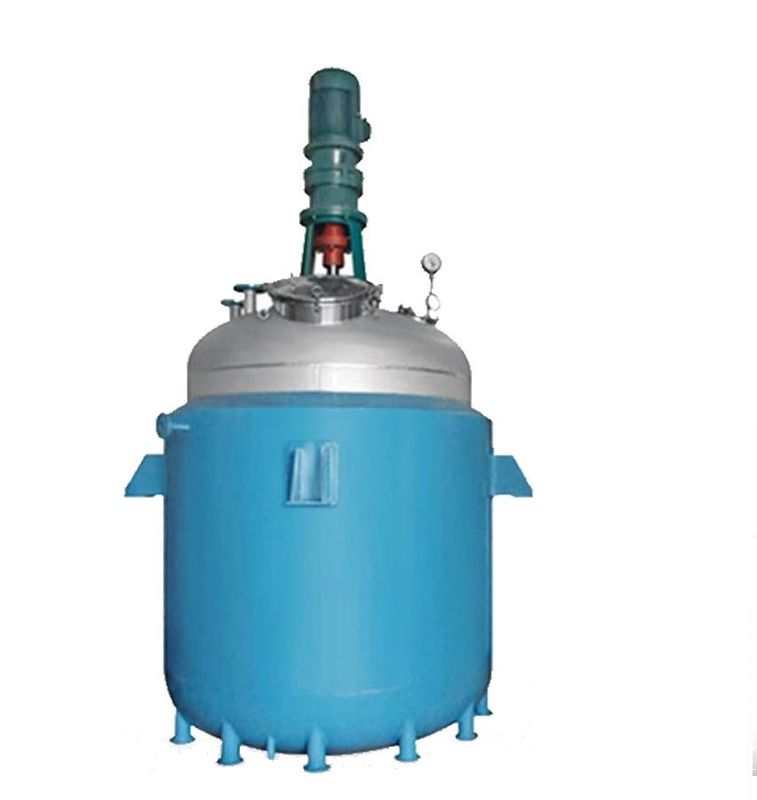

High Pressure Electrical Reaction Kettle Steam Heated Jacketed Reactor
Product Features
❶Materials of the reaction kettle are heated by jacket.
❷The vent pipe installed in the upper part of the jacket should be unblocked.
❸Oil should be slowly heated, especially in the first warming period, you should pay attention to preventing oil and steam from blasting boiling.
❹If there are no materials (heat absorbing medium) in the kettle, don’t heat jacket for testing.
❺The heating speed and insulation status(on/off) can be adjusted by valves or temperature controller.
Product parameters
| 规格(L)Specification | 公称直径(Φmm)Nominal Diameter | 夹套公称直径(Φmm)Nominal Diameter of Jacket |
电动机功率(kw) Motor Power |
减速机型号 Model of Gearbox |
搅拌转速(r.p.m) Stirring Speed |
| 30 | 400 | 500 | 0.6 | BLD 0.6-1 | 60-100 |
| 50 | 500 | 600 | 0.8 | BLD 0.8-1 | 60-100 |
| 100 | 550 | 650 | 1.1 | BLD 1.1-1 | 60-100 |
| 150 | 600 | 700 | 2.2 | BLD 2.2-2 | 60-100 |
| 200 | 650 | 750 | 2.2 | BLD 2.2-2 | 60-100 |
| 300 | 800 | 900 | 3 | BLD 3-2 | 60-100 |
| 500 | 900 | 1000 | 3 | BLD 3-2 | 60-100 |
| 800 | 1100 | 1200 | 4 | BLD 4-2 | 60-100 |
| 1000 | 1200 | 1300 | 4 | BLD 4-3 | 60-100 |
| 1500 | 1300 | 1400 | 4 | BLD 4-3 | 60-100 |
| 2000 | 1400 | 1500 | 5.5 | BLD 5.5-3 | 60-100 |
| 2500 | 1400 | 1500 | 7.5 | BLD 7.5-4 | 60-100 |
| 3000 | 1400 | 1500 | 7.5 | BLD 7.5-4 | 60-100 |
| 3500 | 1400 | 1500 | 7.5 | BLD 7.5-4 | 60-100 |
| 4000 | 1500 | 1600 | 7.5 | BLD 7.5-4 | 60-100 |
| 5000 | 1600 | 1700 | 7.5 | BLD 7.5-4 | 60-100 |
| 6000 | 1800 | 1900 | 15 | BLD 15-5 | 60-100 |
| 18000 | 2000 | 2100 | 15 | BLD 15-5 | 60-100 |
| 32000 | 3000 | 3200 | 37 | BLD 37-56A | 35-59 |
| 80000 | 4000 | 4200 | 55 | BLD 55-56A | 35-59 |
