Electric SS304 380V 440V Sludge Dryer System

Electric SS304 380V 440V Sludge Dryer System
Electric SS304 380V 440V Sludge Dryer System

Large Image :  Electric SS304 380V 440V Sludge Dryer System

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Stord
Certification: ISO9001,ISO14001,CE,PED,ASME,DNV,TR-620 etc.
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard, suitable for sea freight and land transportation
Delivery Time: 3-4 months
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 9 sets / year

Electric SS304 380V 440V Sludge Dryer System

Raw Material: Civil Sludge, Industrial Sludge Machine Material: Carbon Steel, Stainless Steel304, Stainless Steel 316
Voltage: 380V,440V (The Voltage Can Be As Local Demand) Market: Peru, Chile, Spain, Canada, The United States, Russia, Denmark, South Africa And Iceland
Condition: New Warranty: 1 Year
Function: Make Animal Waste To Be Meal And Oil
High Light:

SS304 sludge dryer system


380V sludge dryer system


440V sludge dryer system

Use for sludge drying equipment for civil sludge and industrial sludge




Overview: Specifications for volute press


Stainless steel sludge press/ stainless steel volute dewatering press/sludge screw press


Volute screw press
Key selling points Long service life, competitive price, large evaporation   Machine material Carbon steel, stainless steel304, stainless steel 316
Original Jiangsu, China Condition New
Capacity As per requirement Warranty 1 year
MOQ 1 set Delivery time Negotiable
Model As per requirement Function Dewatering
Price Negotiable Shipping port Shanghai port
Voltage 380V,440V. The voltage can be as local demand. Packing Export standard, suitable for sea freight and land transportation
Payment term L/C, D/A, D/P, T/T, Western Union, Money Gram Certification ISO9001,ISO14001,CE,PED,ASME,DNV,TR-620 etc.



Product details

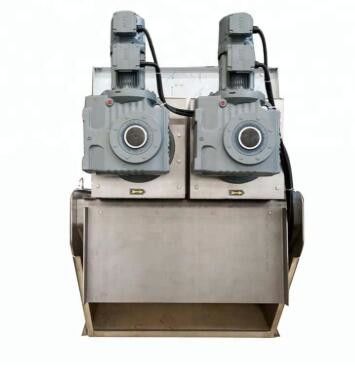

sludge volute press

Volute dewatering press pertains to spiral extrusion machine, which can improve desilter and sludge thickener, and save construction cost of exhaust water factory. The machine replaces automatic update for filtration of filter mass for traditional sieving filteration. Consecutive separation of water and sludge is realized efficiently. Extrusion and dehydration of sludge is carried out via strong force resulting from the change of spiral spindle diameter and screw pitch, as well as tiny gap between float ring and fixing ring. Sludge is concentrated by gravity at concentration system before transferred to dehydration system. During delivery, filtration gap and screw pitch get smaller, and internal pressure is produced with resistance of back pressure plate and volume is reduced, thus realizing extrusion and dehydration.


Disc dryer

disc dryer can heat not only by the shell but also by the internal rotor, greatly increasing the drying area, improving the thermal efficiency and ensuring the complete drying of materials. This equipment is characterized by high drying efficiency, long service life and low maintenance frequency and finds extensive applications in drying the materials with high moisture content and high viscosity such as municipal sludge, industrial sludge, animal protein, plant protein, food, chemical materials and pesticide. According to different physical properties of materials, the disc dryer can be constructed of carbon steel, stainless steel 304, 316L and dual phase steel.


Hollow blade Paddle dryer

Hollow blade Paddle dryer is a kind of heat conducting and low speed mixing type dryer. There is a jacket installed inside the cylinder and hollow blades equipped in the hollow shaft, when heat carrier enters, wet materials are mixed by the paddle, thus heat exchange of cylinder and stirring blade hot surface is fully processed, so that raw materials are dried.


Technical parameters:


Model Capacity of pure dry sludge Capacity of sludge handling
Low(kg/h) High(kg/h) 2000mg/L 5000mg/L 10000mg/L 20000mg/L 25000mg/L 50000mg/L
SYD-130 30 45 14m3/h 6m3/h 5m3/h 2m3/h 2m3/h 1m3/h
SYD-200 40 65 20m3/h 8m3/h 7m3/h 3m3/h 3m3/h 1m3/h
SYD-301 50 80 25m3/h 10m3/h 8m3/h 4m3/h 4m3/h 2m3/h
SYD-302 100 160 50m3/h 20m3/h 16m3/h 8m3/h 6m3/h 3m3/h
SYD-303 150 250 75m3/h 30m3/h 24m3/h 12m3/h 10m3/h 5m3/h


Model spindle diameter(mm) Emission height of sludge (mm) dimensionLWH (mm) N.T(kg) Operation Weight(kg)
SYD-130 ф130 600 1500x1150x1550 550 750
SYD-200 ф200 700 2000x1450x1800 1150 1500
SYD-301 фЗ0О 750 2550x1100x2150 950 1350
SYD-302 фЗОО 750 2550x1300x2150 1700 2500
SYD-303 ф300 750 2550x1800x2150 2500 3800


Our office area

Electric SS304 380V 440V Sludge Dryer System 0


Our processing equipment

Electric SS304 380V 440V Sludge Dryer System 1


Our service:

1.  1. Pre-sales service

a.  Inquiry and consulting support. Our team includes sales man, technology engineer will discuss together and provide a professional technical               design and solutions, fast reply your inquiry or questions by phone meeting or video meeting or email.

b. Invite customer to visit our workshop.

2. After-sales service

a. Inform the manufacturing progress in time.

b. Carefully check the quality of products.

c. Standard export package or as your demand.

d. Spare and wearing parts for free or with big discount.

e. If any problem occur in warranty, contact us freely, we will try our best to support

f. The warranty of complete rendering plant will be available within one year after completion of test run.

g. Engineers are available to service overseas.

Electric SS304 380V 440V Sludge Dryer System 2



Q1: can you supply the machine of whole line of sludge drying?

Yes, we are professional workshop, we can design and manufacture the machine as per your requirements.

Q2: How can we do after we get the machine?

Our engineer will supply oversea service, install the machine and train your stuff.

Q3: Which level quality are your products?

We have got CE,ISO,SGS,TUV,DNV certificate so far.

Q4: How can I choose the drying machine?

Please tell us what is the raw material and how many raw material do you want to process per day? how many final product do you want to get? We will make a proposal for you within 24 hours.

Q5: what's your payment term?

It is negotiable. Generally,40% Down, 60% before delivery after inspection by the Customer.
