|Liquid Flow Rate:||Max 50m3||Maximum Working Pressure:||10Mpa|
|Weight:||As Per Design||Warranty:||2 Years|
|After-sales Service Provided:||Free Spare Parts, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support||Applicable Industries:||All Industries|
|Condition:||New||Structure:||Tube Heat Exchanger|
|Voltage:||220/380||Dimension(L*W*H):||As Per Design|
|Tube Material:||Stainless Steel/Carbon Steel/Copper||Gaskets Material:||Silicone/FKM/PTFE|
|Frame Material:||Cabon Steel||Tube Diameter:||19mm-325mm|
|Design Pressure:||Less Than 10Mpa||Application:||Heat Transfer,cooling|
double pipe heat exchanger,

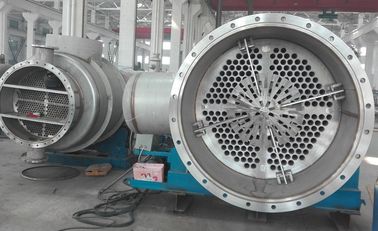

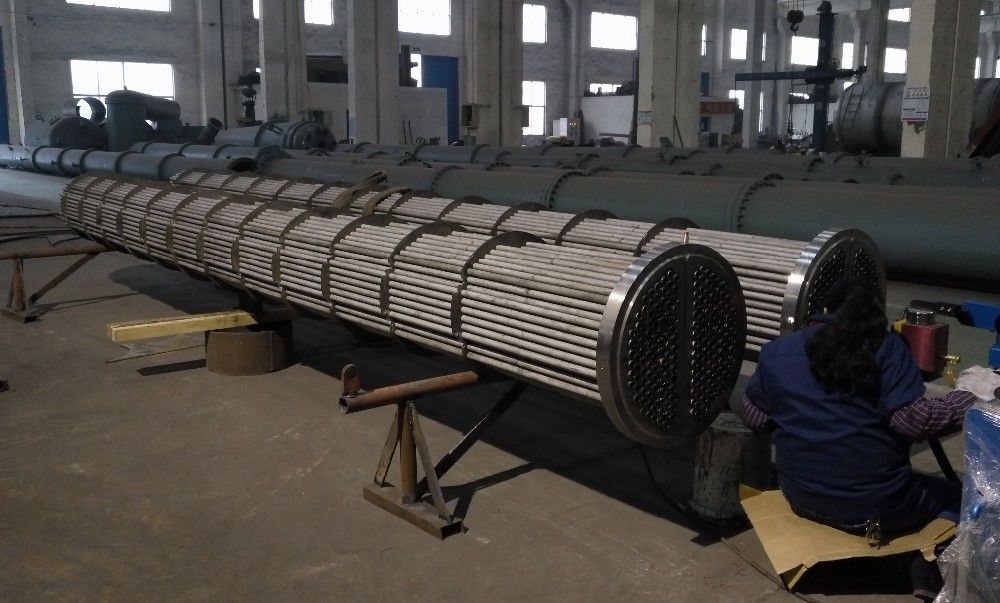

industrial shell and tube heat exchanger
Tube heat exchanger is the feature product in our company, of which the structure design, manufacturing and application are unique. Spiral tube type, arc tube and baffle plate type tubular exchanger are independent R&D products in the company, featuring advanced technology in the world, widely used in industries particularly in petrifaction, electricity and metallurgy.
Heat exchanger, also called heat transfer machine, is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.
The type of heat exchanger that our company can provides: Spiral-plate heat exchanger, corrugated tube heat exchanger, threaded pipe heat exchanger, plate heat exchanger, spiral baffle plate heat exchanger, double-tube plate heat exchanger, fin tubular heat exchanger, float-head heat exchanger, U-tube heat exchanger, stacked heat exchanger, and decompose type heat exchanger etc.
Heat exchange area and pressure can be customized according to customers' requirements. The tube heat exchangers which include U type, float-head type, corrugated tube type.
1) Material: stainless steel and/or carbon steel, manganese steel, copper and titanium etc
2) Heat exchanger area: 1 - 500sqm
3) Shape: fixed pipe plate, floating head, U-type pipe
4) Structure: single channel, double channel and multi-channel
5) Used for evaporating, heating, condensing, cooling process
6) Various specifications available according to customer's requirements.
|Main technical parameters of our tube heat exchanger|
|Maximun design pressure||no more than 10 Mpa|
|Maximum design temp||850"C|
|Maximum shell diameter||4600mm|
|Maximum area of heat exchanger for single facility||6000mF|
|Material||Carbon steel, stainless steel 304, 316 L, 2205, 904 L; titanium,copper, nickel and hastelloy|
