Product Details:
|
| Warranty: | 2 Years | Type: | Cutter |
|---|---|---|---|
| Dimension(L*W*H): | As Per Design | Applicable Industries: | Food & Beverage Shops |
| Condition: | New | Voltage: | 220/380/440V |
| Weight: | 500 Kg | After-sales Service Provided: | Free Spare Parts |
| Construction Material: | Carbon Steel ,stainless Steel | Capacity: | As Per Your Requirement |
| Raw Material: | Various Kind Of Bone And Meat, Animal Waste | Motor Brand: | As Customer's Requirements |
| Port: | Shanghai | ||
| High Light: | 55kw Bone Crushing Machine,25t/h Bone Crushing Machine,carbon bone crushing machine |
||

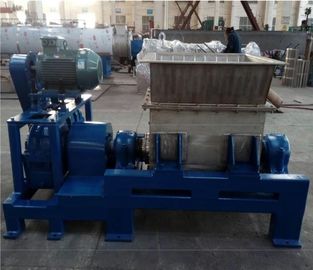

Industrial Meat Bone Crusher / Rendering Animal Bone Crusher Machine

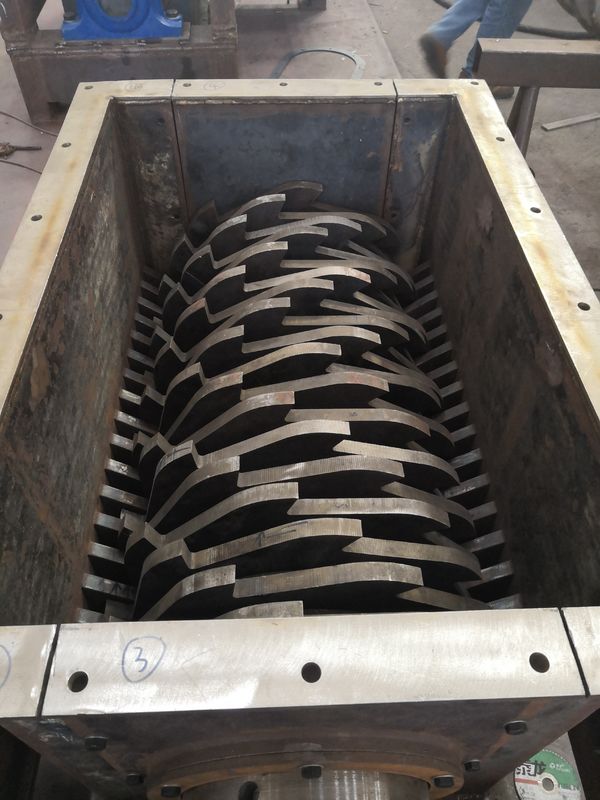

Crusher is used for crushing the whole animal carcasses, and various internal organs and bones from slaughterhouses. Generally use crusher to reduce the size of the material and then delivery by screw conveyor or vane pump before cooking. The motor model and the speed of the crushing shaft can be adjusted according to the production demand, the operation cost is low.The design of quick repair and replacement parts makes the crusher more efficient.
1) low speed axis can handle metals in raw materials.
2) equipped with electronic speed monitoring, the motor can be stopped immediately when large matter enter the crusher.
3) the spindle is equipped with heavy roller bearings, which can resist large radial and axial impact.
4) standard parts are used for driving from motor to shaft.
5) localized structures can replace parts in a short time.
6) the material inlet and outlet are equipped with standard removable butt flanges.
| Model | Capacity (t/h) | Teeth pitch (mm) | Power (KW) |
| PS5 | <10 | 30 | 22 |
| PS10 | 5-10 | 30 | 30 |
| PS15 | 10-15 | 30 | 37 |
| PS20 | 15-20 | 30 | 45 |
| PS25 | 20-25 | 30 | 55-75 |
| PS30 | 25-30 | 30 | 75-90 |
Jiangsu Stord Works Ltd. is located in national machinery industrial park, which is at the coast of Taihu Lake, Fangqiao Town, Yixing City, Jiangsu Province. Our company has more than 180 employees, covers an area of 25000m2 and has more than 70 sets of various manufacturing and testing equipments. The maximum lifting capacity is 100T. The bending capacity for the thickest plate is up to 120mm.
