Product Details:
|
| Applicable Industries: | Environmeatal Protection | Type: | Sludge Dewatering Press |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support | Warranty: | 2 Years |
| Power: | 45KW | Material: | Stainless Steel/Carbon Steel |
| Application: | Sludge Dewatering | Raw Material: | Civil Sludge, Industrial Sludge |
| Port: | Shanghai | ||
| High Light: | 45kw screw press wastewater treatment,100kg/h screw press wastewater treatment,100kg/h dewatering screw press machine |
||

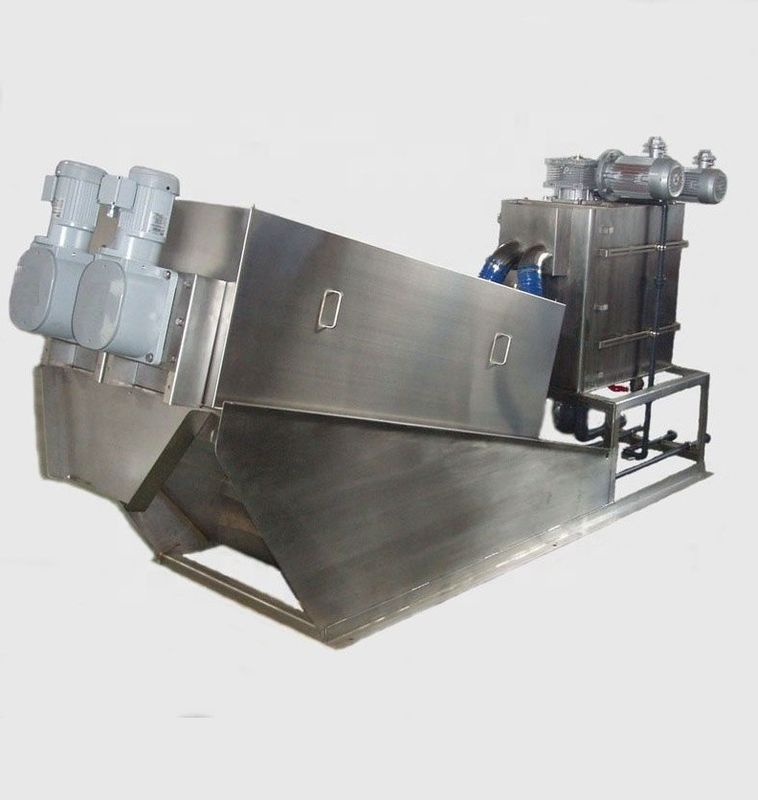

Sludge Horizontal Screw Press / Volute Press For Sludge Dewatering 45KW
| Model | Capacity of pure dry sludge (concentration) | Capacity of sludge handling | ||||
| Low (kg/h) | High (kg/h) | dimension | 5000mg/L | 10000mg/L | 20000mg/L | |
| SYD-130 | 30 | 45 | 14m3/h | 6m3/h | 5m3/h | 2m3/h |
| SYD-200 | 40 | 65 | 20m3/h | 8m3/h | 7m3/h | 3m3/h |
| SYD-301 | 50 | 80 | 25m3/h | 10m3/h | 8m3/h | 4m3/h |
| SYD-302 | 100 | 160 | 50m3/h | 20m3/h | 16m3/h | 8m3/h |
| SYD-303 | 150 | 250 | 75m3/h | 30m3/h | 24m3/h | 12m3/h |
| Model | spindle diameter (mm) | Emission height of dimension(mm) | dimension( LẞWxH (mm) ) | N.T | Operation Weight |
| SYD-130 | ф130 | 45 | 1500x1150x1550 | 550 | 740 |
| SYD-200 | ф200 | 65 | 2000x1450x1800 | 1150 | 1500 |
| SYD-301 | ф300 | 80 | 2550x1100x2150 | 950 | 1350 |
| SYD-302 | ф300 | 160 | 2550x1300x2150 | 1700 | 2500 |
| SYD-303 | ф300 | 250 | 2550x1800x2150 | 2500 | 3800 |
